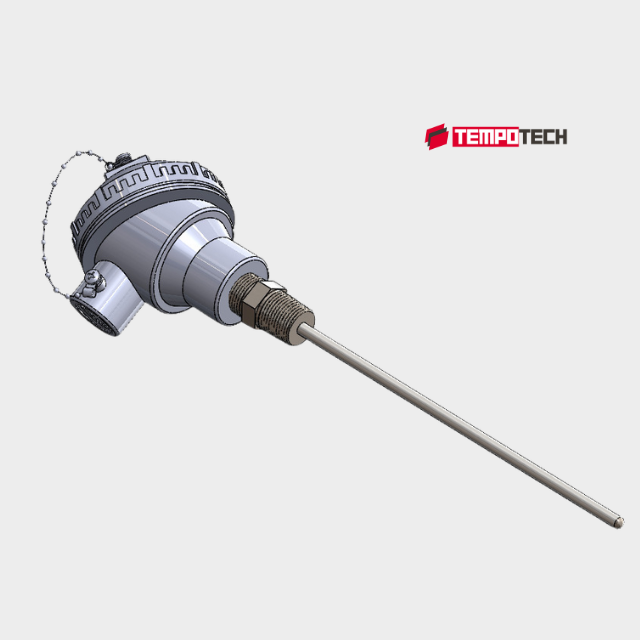

Type K Spring Loaded Threaded Thermocouple with Connection Head
Type K Thermocouple Mineral Insulated Cable Industrial thermocouple, Spring Loaded , ungrounded, stainless steel sheath, 1/2in male NPT process connection, with Aluminum Connection Head.
- Type K Thermocouple
- Ungrounded Junction
- 316 Stainless Steel Sheath Material
- Accuracy: Standard Limit of error
- Temperature Range: -200°C to 1260°C

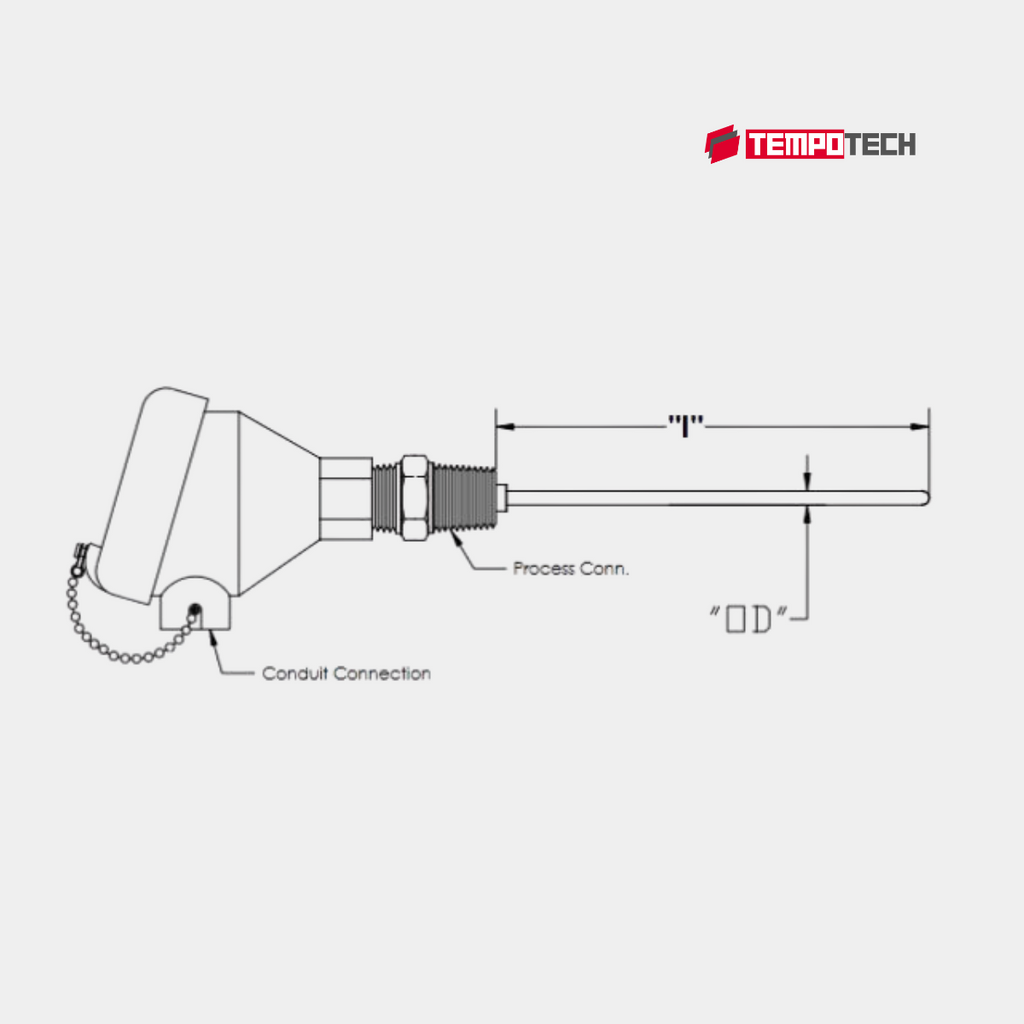

- 0.250" Probe OD
- 1/2" NPT Process Connection
- 3/4" NPT Conduit Connection

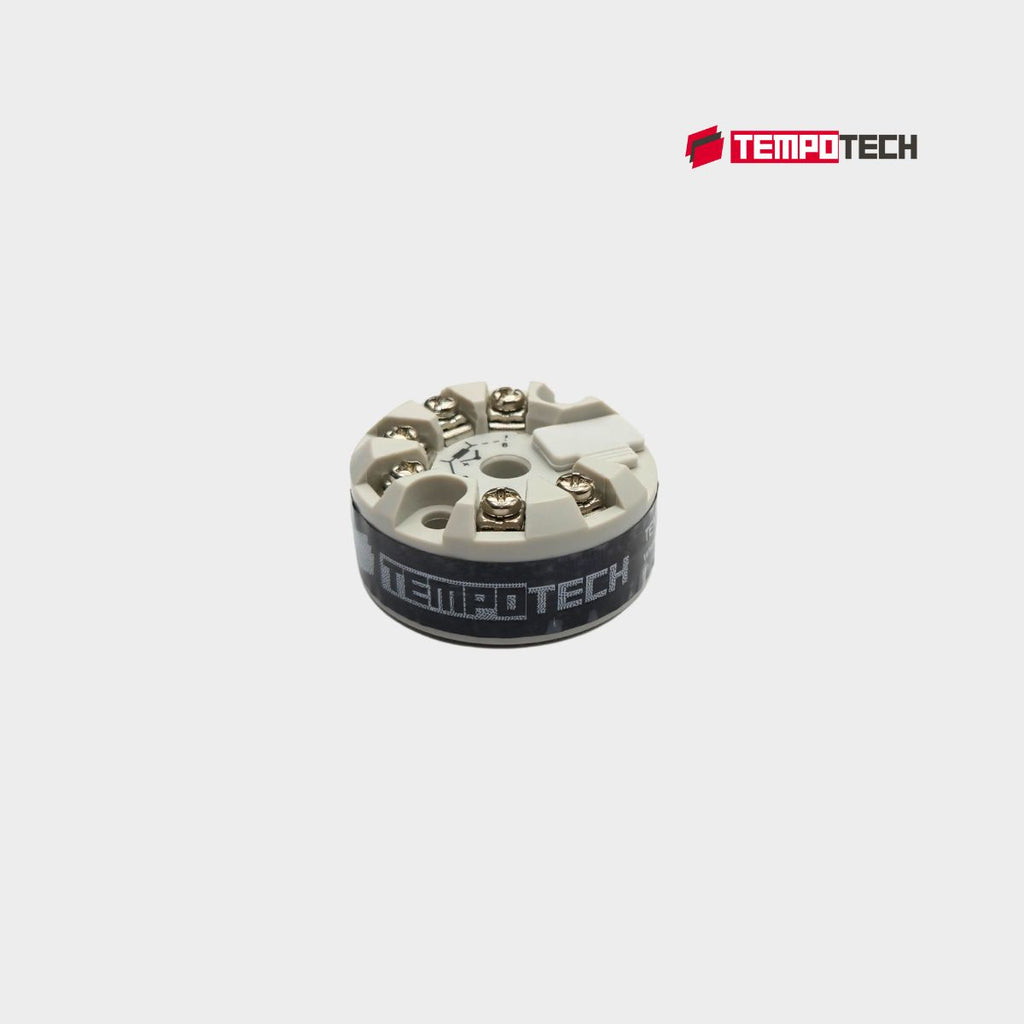

- Terminal Block and Transmitter 4-20 mA both options available
- Aluminum Connection Head Rated NEMA 4X & IP68
- Spring Load Hex Fitting for Thermowell Installation
Q & A (Questions and Answers)
What are the calibration options for thermocouple probes, and what is the lead time?
Thermocouple calibrations are performed using a standard 3 points calibration ranges vary depending on the thermocouple type, typically covering 0°C to 1200°C. Custom calibration points are available upon request by contacting us at sales@tempotechcontrols.com or leave message on Custom message Section . Please note that adding calibration to any probe order requires an additional 2 business days of lead time.
Are these thermocouples manufactured using MI cable?
Yes. Our thermocouples are available in mineral-sheathed (MI) construction, where the thermocouple wires are embedded in compressed magnesium oxide (MgO) insulation and enclosed in a stainless steel or Inconel sheath. This provides excellent mechanical strength, vibration resistance, fast response time, and reliable performance at high temperatures. We can also form, bend, and customize MI thermocouples to suit specific application requirements..
Can I request customization for my thermocouple and RTD ?
Yes, we offer a wide range of customization options, including probe length, sheath material, thermocouple type, junction style, lead wire configuration, fittings, and other special requirements. On this store, we only sell standard parts. For any custom or non-standard thermocouples, please contact our sales team or email us at sales@tempotechcontrols.com with your specifications.
What certifications do these products have?
Our products meet relevant industry standards including ANSI, IEC, and ASTM where applicable. Specific certifications vary by product - check technical documentation or contact us for details.
Do you provide technical data sheets ?
Yes, technical datasheets, wiring diagrams, and installation guides are available for download on our website tempotechcontros.com , or you can contact us.
