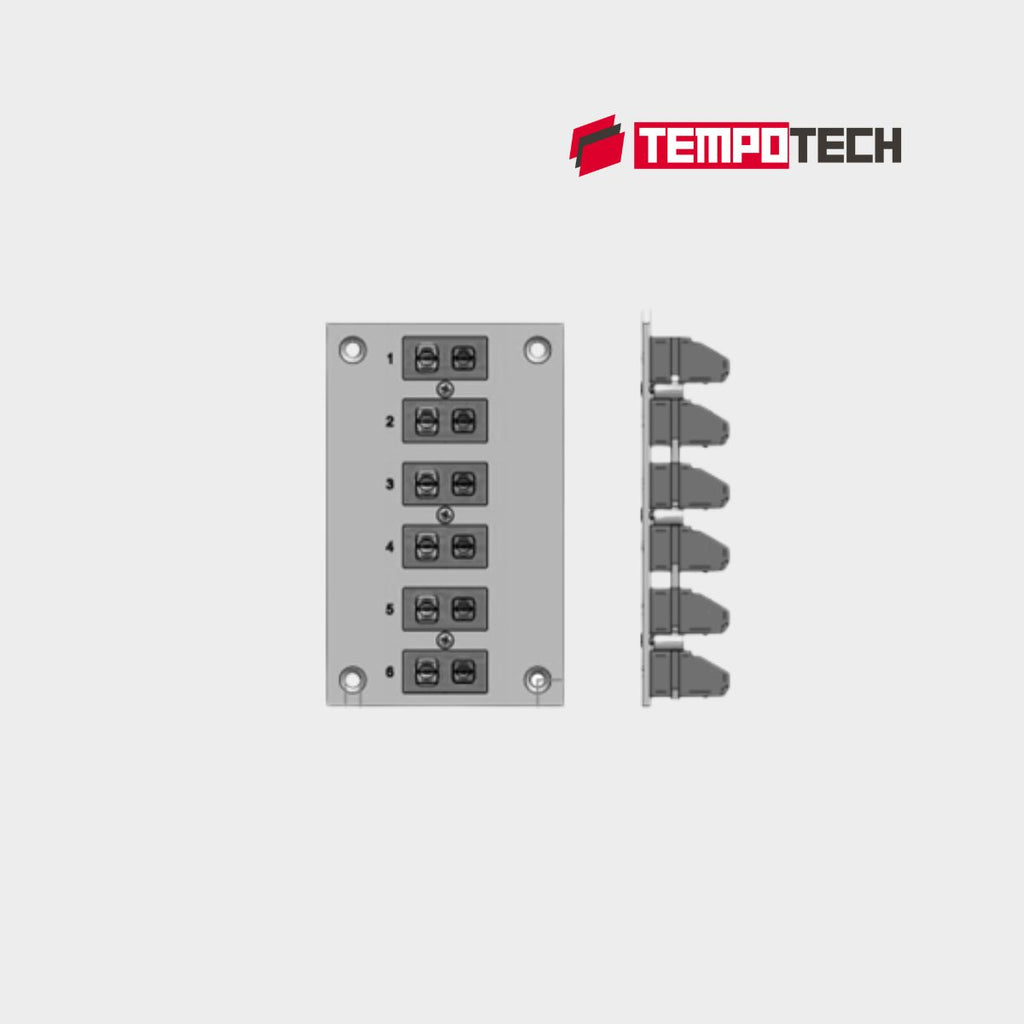

Thermocouple Multi Jack Panel, 1-6 Circuits, Customizable & Durable
Unmatched Versatility for Your Thermocouple Needs
Discover the ultimate solution for your temperature measurement challenges with our Multi Jack Panel for Thermocouples. Designed for both precision and flexibility, this innovative jack panel is your answer to accurate and reliable thermocouple connections. With options ranging from 1 to 6 circuit variants, tailor it to your specific needs and achieve seamless integration into any application. The anodized aluminum plate ensures durability and efficient thermal management, making it an essential asset for those who prioritize performance and longevity. Imagine the possibilities when you're equipped to handle multiple connections effortlessly.
Engineered for Extreme Conditions
When you push the limits, you require equipment that can keep up. Our Jack Panels for Thermocouples are engineered to withstand temperatures up to 200°C with ease. Rest assured that your thermocouple wires, with sizes up to 1.5 mm, are securely housed and ready to meet any industrial challenge. Whether you’re working in high-temperature environments or need precise measurements under intense conditions, these panels provide continuous support, helping you maintain the highest standards of safety and accuracy. Elevate your operations by opting for a solution that embraces the extremes.
Customized Panels for Every Specification

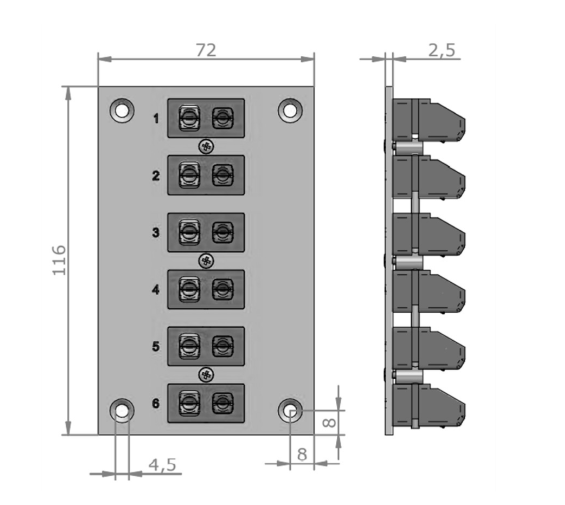

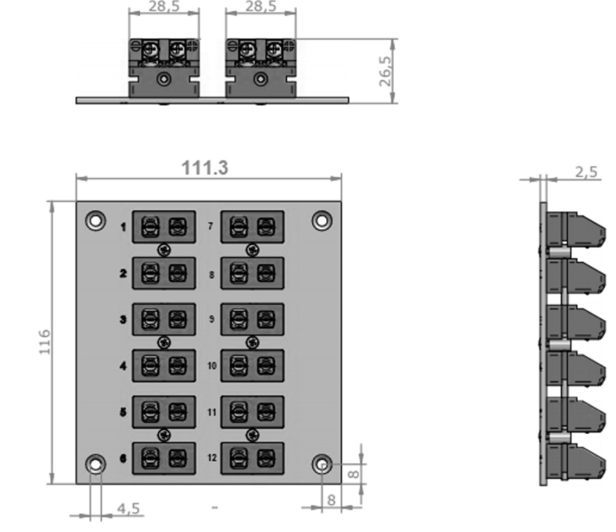

Stand out with solutions tailored just for you. Understanding that each project has unique demands, we offer custom panels to perfectly align with your specific requirements. No more compromises; get a bespoke panel that reflects the distinct needs of your operation. From enhanced connectivity to bespoke dimensions, your ideal setup is just a collaborative conversation away. With all dimensions meticulously crafted in millimeters, precision is built into every facet of each custom panel, ensuring that your equipment performs flawlessly and efficiently. Choose a partnership that empowers innovation and delivers exactly what you envision.
Q & A (Questions and Answers)
What wire sizes can these connector accept
The Standard thermocouple connector plug and jack can accept wires up to 1.6 mm in diameter and support a maximum cable diameter of 8.0 mm. the Miniature thermocouple connector plug and jack are designed for smaller gauge cables, accepting wires up to 0.6 mm with a maximum cable diameter of 4.5 mm.
Are accessories available for these connectors?
Yes — a wide range of accessories such as cable clamps, panels, and boots are available (refer to accessory specification sheets).
Do you provide technical data sheets ?
Yes, technical datasheets, wiring diagrams, and installation guides are available for download on our website tempotechcontros.com , or you can contact us.
